AUTHORIZED DISTRIBUTOR
WESTERN CONFECTIONARY

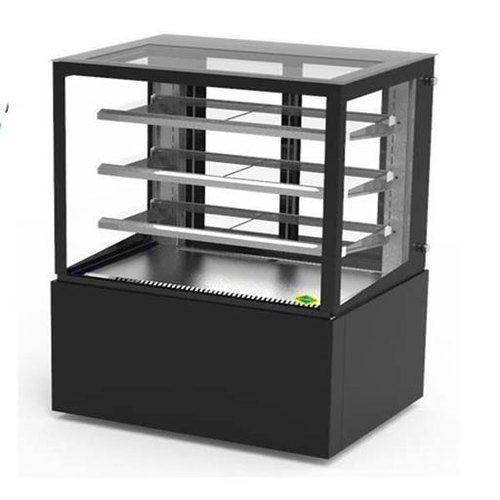

PASTRY CABINET PTW09
SPECIFICATIONS:
Gross volume(Lts) :- 360 Lts
Net volume (Lts) :- 320 Lts
External dimensions (mm) :- 900(W)x665(D)x1235(H)
Internal dimensions (mm) :- 810(W)x570(D)x710(H)
Foot print (sq.mtr) :- 0.6
Refrigerant :- R134a
Temperature range :- 2°to 10° c
Shelves (nos) :- base+3 shelves
Other available option :- Cold cabinet, Hot cabinet, Ambient cabinet
FEATURES:
⦁ Adjustable glass shelves
⦁ Faster pull down
⦁ Heated glass
⦁ Electronic temperature control
⦁ Stainless steel inner bottom shelf
⦁ caster wheel for easy movement
⦁ Led lamps for individual shelves
⦁ On/off switch for lights and glass heater
⦁ Wire on tube condenser for low maintenance
PASTRY CABINET PTW12
SPECIFICATIONS:
Gross volume(Lts) :- 500 Lts
Net volume (Lts) :- 435 Lts
External dimensions (mm) :- 1200(W)x665(D)x1235(H)
Internal dimensions (mm) :- 1110(W)x570(D)x710(H)
Foot print (sq.mtr) :- 0.8
Refrigerant :- R134a
Temperature range :- 2°to 10° c
Shelves (nos) :- base+3 shelves
Other available option :- Cold cabinet, Hot cabinet, Ambient cabinet, stainless steel variant, low cost variant
FEATURES:
⦁ Adjustable glass shelves
⦁ Faster pull down
⦁ Heated glass
⦁ Electronic temperature control
⦁ Stainless steel inner bottom shelf
⦁ caster wheel for easy movement
⦁ Led lamps for individual shelves
⦁ On/off switch for lights and glass heater
⦁ Wire on tube condenser for low maintenance

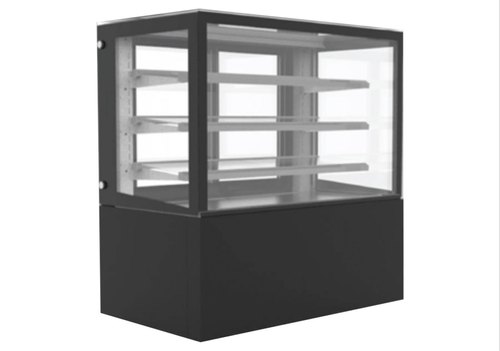

PASTRY CABINET PTW15
SPECIFICATIONS:
Gross volume(Lts) :- 660 Lts
Net volume (Lts) :- 577 Lts
External dimensions (mm) :- 1500(W)x665(D)x1235(H)
Internal dimensions (mm) :- 1410(W)x570(D)x710(H)
Foot print (sq.mtr) :- 1
Refrigerant :- R134a
Temperature range :- 2°to 10° c
Shelves (nos) :- base+3 shelves
Other available option :- Cold cabinet, Hot cabinet, Ambient cabinet
FEATURES:
⦁ Adjustable glass shelves
⦁ Faster pull down
⦁ Heated glass
⦁ electronic temperature control
⦁ Stainless steel inner bottom shelf
⦁ caster wheel for easy movement
⦁ Led lamps for individual shelves
⦁ On/off switch for lights and glass heater
⦁ Wire on tube condenser for low maintenance
